Newport NK180 Kayak Motor

Features:

• Flexible Power: No Proprietary Battery Reequiredwith Lithium or AMG Batteries
• Extended Range: Increases the effective range of any angler
• Intuitive Operation: Efficient, powerful motor in a durable package
• Modular: Steering cables can be set
• Speed: Brushless Technology that exceeds 5MPH
• Efficient: Low noise, direct drive design

Range:

• 20% Throttle = 32.2 Hours = 63.91 Miles
• 40% Throttle = 10.0 Hours = 33.5 Miles
• 60% Throttle = 5.2 Hours = 21.53 Miles
• 80% Throttle = 3.2 Hours = 15.77 Miles
• 100% Throttle = 2.25 Hours = 12.16 Miles

* Run time shown is estimated with a 50AH lithium battery at 90% discharge. Increasing size of the battery to 100AH will double the time and range estimates.

Specifications:

•    Brand: Newport
•    SKU: NP-NK180-V
•    UPC: 868970000174
•    MPN: 23M1000601
•    Input Voltage: 24V
•   Shaft Length: 19.7″(~50.04 cm)
•    Battery Type: Lithium or Lead-Acid
•    Total Weight: 14.3lbs(~6.49 kg)
•    Motor Housing Length: 8.75″(~22.23 cm)
•    HP Equivalent: 1.8HP
•    Motor Housing Width: 3″(~7.62cm)
•    Inside Length: 86″(~226.06cm)
•    Max Amp Draw: 25A

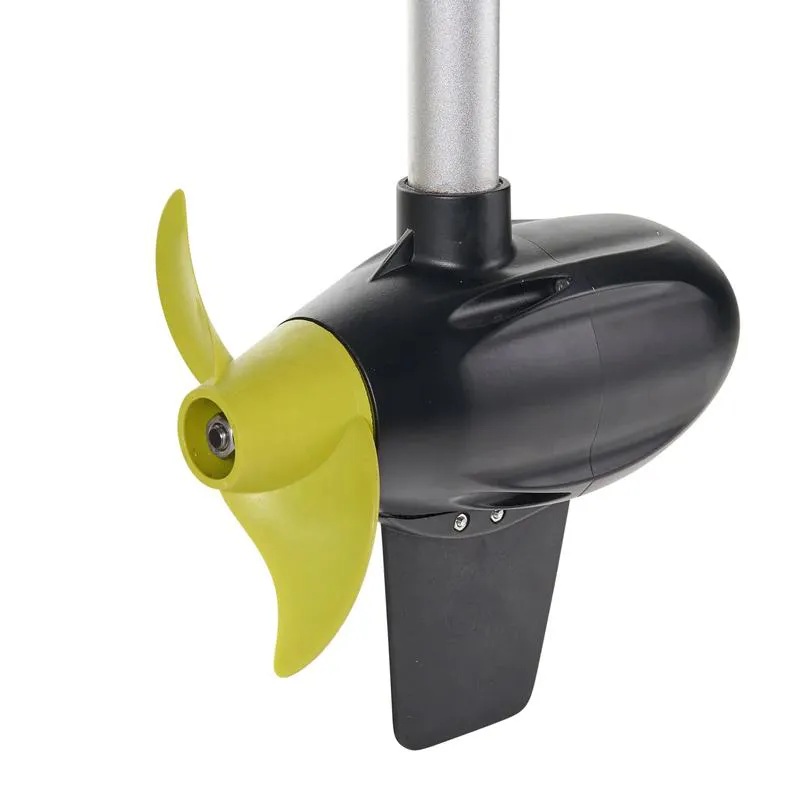

•    Propeller Diameter: 5.9″(~14.99cm)
•    Max. Propeller Speed: 1800rpm
•    Mount Bracket Dims: 14″(~35.56cm) L x 6″ (~15.24cm)W
•    Max Test Speed: 5.7mph
•    Min. Mount Dims: 5.5″(~13.97cm) L x 4.5″(~11.43cm) W
•   Shaft Diameter: 1.15″(~2.92cm)
•   Battery Cables: 7

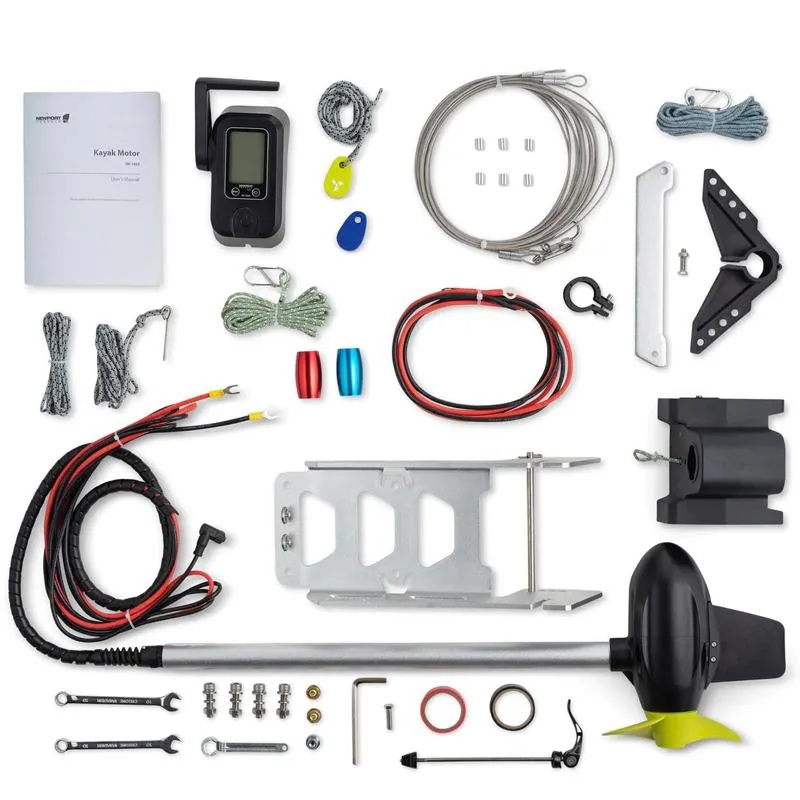

What’s In the Box

• 1.8hp Equivalent Motor Unit

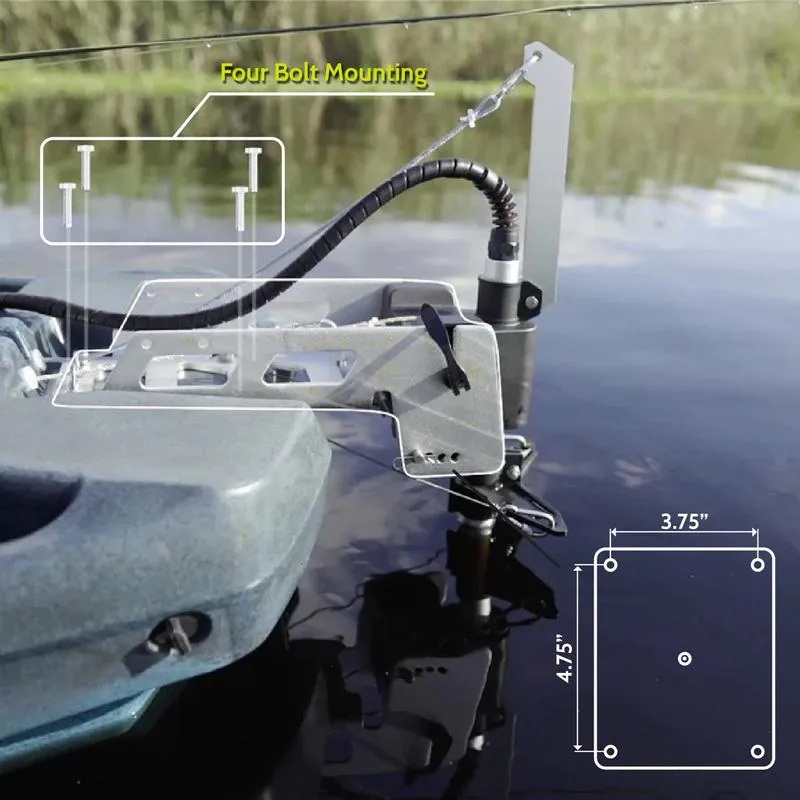

• Four Bolt Aluminum Mount

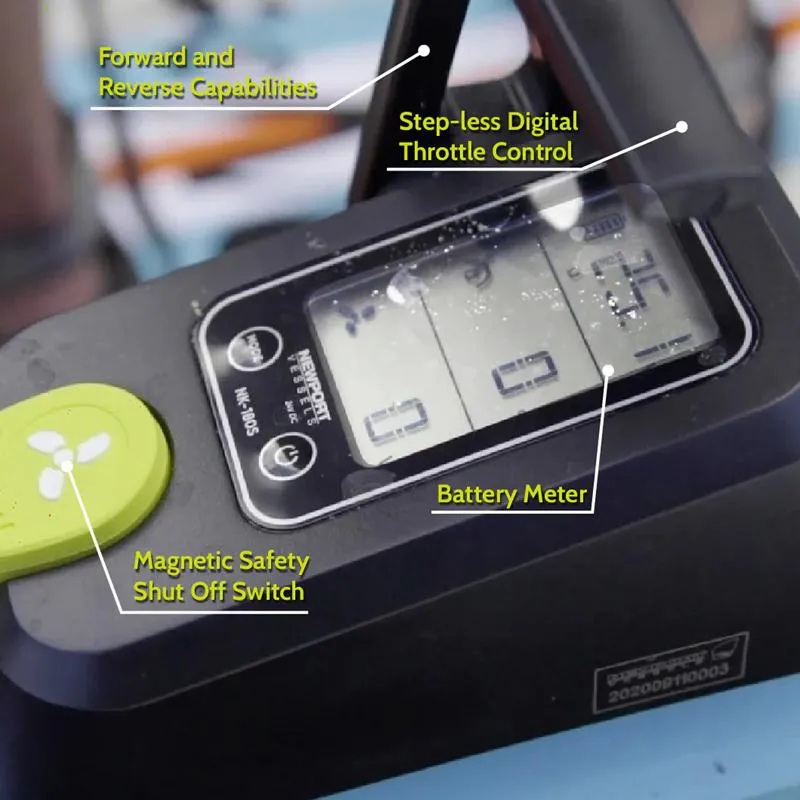

• Digital Speed Controller w/ Display
• Steering Triangle
• Height Adjustment Clamp
• Reverse Cable Handle
• Motor Lift Cable Handle
• Emergency Stop Key
• Motor Lift Arm
• 2x Carabiner
• 2x S Biner
• Nylon Cord Kit
• Braided Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)
• Installation Kit (hardware included, additional hardware may be necessary depending on your exact make/model of kayak)
